JEM STRAPPING SYSTEMS

JEM strapping is available in a wide range of types, sizes, gauges and finishes to accommodate your strapping requirements. Our edge conditioned strapping ensures a safe, rounded edge that is problem-free during application. Our high tensile and regular duty strapping conforms to government ASTM specifications.

AAR - 24

AAR Certified Strapping is available in 3/4" and 1-1/4" High Tensile Steel Strapping

REGULAR DUTY STEEL STRAPPING (RD)

TAGS	STRAP SIZE		THICKNESS	PART NUMBER	SEALS	AVERAGE BREAK STRENGTH *	ELONGATION	LENGTH		COIL WINDING	FINISH	PRICE
	INCH	MM					FT/LB.	M/KG
	1/2"	12.7	.015" (.38mm)	RD1512	O - 401 P - 403 SEALS OPEN SEALS (O) PUSH-TYPE (P)	950 lbs	0.5% - 4%	39.30'	26.4	OSC OSCILLATED COIL WINDING The steel strapping is wound in a tight uniform pattern to a face width of 2-5/8" (67mm). Coils are typically 90 lbs (40kg) to 110 lbs (50kg); however, normally average 100 lbs (45kg)	P FINISHES PAINTED AND WAXED (P)	MORE INFO
** ** = SAMPLE COIL A 200/300 ft demonstration coil is available for this size strapping.	1/2"	12.7	.020" (.51mm)	RD2012	O - 401 P - 403 SEALS OPEN SEALS (O) PUSH-TYPE (P)	1220 lbs	0.5% - 4%	29.40'	19.8	OSC OSCILLATED COIL WINDING The steel strapping is wound in a tight uniform pattern to a face width of 2-5/8" (67mm). Coils are typically 90 lbs (40kg) to 110 lbs (50kg); however, normally average 100 lbs (45kg)	P FINISHES PAINTED AND WAXED (P)	MORE INFO
	1/2"	12.7	.023" (.58mm)	RD2312	O - 401 P - 403 SEALS OPEN SEALS (O) PUSH-TYPE (P)	1375 lbs	0.5% - 4%	25.60'	17.2	OSC OSCILLATED COIL WINDING The steel strapping is wound in a tight uniform pattern to a face width of 2-5/8" (67mm). Coils are typically 90 lbs (40kg) to 110 lbs (50kg); however, normally average 100 lbs (45kg)	P,ZE FINISHES PAINTED AND WAXED (P) ZINC/EPOXY COATED (ZE)	MORE INFO
	5/8"	15.9	.015" (.38mm)	RD1558	O - 501 P - 503 SEALS OPEN SEALS (O) PUSH-TYPE (P)	1180 lbs	0.5% - 4%	31.40'	21.1	OSC OSCILLATED COIL WINDING The steel strapping is wound in a tight uniform pattern to a face width of 2-5/8" (67mm). Coils are typically 90 lbs (40kg) to 110 lbs (50kg); however, normally average 100 lbs (45kg)	P FINISHES PAINTED AND WAXED (P)	MORE INFO
** ** = SAMPLE COIL A 200/300 ft demonstration coil is available for this size strapping.	5/8"	15.9	.020" (.51mm)	RD2058	O - 501 P - 503 SEALS OPEN SEALS (O) PUSH-TYPE (P)	1500 lbs	0.5% - 4%	23.60'	15.9	OSC OSCILLATED COIL WINDING The steel strapping is wound in a tight uniform pattern to a face width of 2-5/8" (67mm). Coils are typically 90 lbs (40kg) to 110 lbs (50kg); however, normally average 100 lbs (45kg)	U,B,P,ZE FINISHES UNPAINTED AND WAXED (U) BLUED AND WAXED (B) PAINTED AND WAXED (P) ZINC/EPOXY COATED (ZE)	MORE INFO
	5/8"	15.9	.023" (.58mm)	RD2358	O - 501 P - 503 SEALS OPEN SEALS (O) PUSH-TYPE (P)	1720 lbs	0.5% - 4%	20.50'	13.8	OSC OSCILLATED COIL WINDING The steel strapping is wound in a tight uniform pattern to a face width of 2-5/8" (67mm). Coils are typically 90 lbs (40kg) to 110 lbs (50kg); however, normally average 100 lbs (45kg)	U,B,P,ZE FINISHES UNPAINTED AND WAXED (U) BLUED AND WAXED (B) PAINTED AND WAXED (P) ZINC/EPOXY COATED (ZE)	MORE INFO
	3/4"	19	.015" (.38mm)	RD1534	O - 601 P - 603 SEALS OPEN SEALS (O) PUSH-TYPE (P)	1420 lbs	0.5% - 4%	26.20'	17.6	OSC OSCILLATED COIL WINDING The steel strapping is wound in a tight uniform pattern to a face width of 2-5/8" (67mm). Coils are typically 90 lbs (40kg) to 110 lbs (50kg); however, normally average 100 lbs (45kg)	P FINISHES PAINTED AND WAXED (P)	MORE INFO
** ^ ** = SAMPLE COIL A 200/300 ft demonstration coil is available for this size strapping. ^ = PUNCH STRAPPING This Strapping is available in a 200 ft box, 300ft box, or 100lb coil of Punch Strapping	3/4"	19	.020" (.51mm)	RD2034	O - 601 P - 603 SEALS OPEN SEALS (O) PUSH-TYPE (P)	1810 lbs	0.5% - 4%	19.60'	13.2	OSC OSCILLATED COIL WINDING The steel strapping is wound in a tight uniform pattern to a face width of 2-5/8" (67mm). Coils are typically 90 lbs (40kg) to 110 lbs (50kg); however, normally average 100 lbs (45kg)	U,B,P,PZ,ZE FINISHES UNPAINTED AND WAXED (U) BLUED AND WAXED (B) PAINTED AND WAXED (P) ZINC/EPOXY COATED (ZE) PRO ZINC SILVER (PZ)	MORE INFO
** ** = SAMPLE COIL A 200/300 ft demonstration coil is available for this size strapping.	3/4"	19	.023" (.58mm)	RD2334	O - 601 P - 603 SEALS OPEN SEALS (O) PUSH-TYPE (P)	2050 lbs	0.5% - 4%	17.10'	11.5	OSC OSCILLATED COIL WINDING The steel strapping is wound in a tight uniform pattern to a face width of 2-5/8" (67mm). Coils are typically 90 lbs (40kg) to 110 lbs (50kg); however, normally average 100 lbs (45kg)	U,B,P,PZ,ZE FINISHES UNPAINTED AND WAXED (U) BLUED AND WAXED (B) PAINTED AND WAXED (P) ZINC/EPOXY COATED (ZE) PRO ZINC SILVER (PZ)	MORE INFO
	3/4"	19	.028" (.71mm)	RD2834	S - 717 P - 703-S P - 703LHD SEALS PUSH-TYPE (P) SEMI-CLOSED (S)	2415 lbs	0.5% - 4%	14.00'	10.0	OSC OSCILLATED COIL WINDING The steel strapping is wound in a tight uniform pattern to a face width of 2-5/8" (67mm). Coils are typically 90 lbs (40kg) to 110 lbs (50kg); however, normally average 100 lbs (45kg)	P FINISHES PAINTED AND WAXED (P)	MORE INFO

HIGH TENSILE STEEL STRAPPING (HT)

TAGS	STRAP SIZE		THICKNESS	PART NUMBER	SEALS	AVERAGE BREAK STRENGTH *	ELONGATION	LENGTH		COIL WINDING	FINISH	PRICE
	INCH	MM						FT/LB.	M/KG
	1/2"	12.7	.020" (.51mm)	HT2012	O - 401 P - 403 SEALS OPEN SEALS (O) PUSH-TYPE (P)	1430 lbs	5% - 10%	29.40'	19.8	OSC OSCILLATED COIL WINDING The steel strapping is wound in a tight uniform pattern to a face width of 2-5/8" (67mm). Coils are typically 90 lbs (40kg) to 110 lbs (50kg); however, normally average 100 lbs (45kg)	P FINISHES PAINTED AND WAXED (P)	MORE INFO
	5/8"	15.9	.020" (.51mm)	HT2058	O - 501 P - 503 SEALS OPEN SEALS (O) PUSH-TYPE (P)	1785 lbs	5% - 10%	23.60'	15.9	OSC OSCILLATED COIL WINDING The steel strapping is wound in a tight uniform pattern to a face width of 2-5/8" (67mm). Coils are typically 90 lbs (40kg) to 110 lbs (50kg); however, normally average 100 lbs (45kg)	P FINISHES PAINTED AND WAXED (P)	MORE INFO
	5/8"	15.9	.023" (.58mm)	HT2358	O - 501 P - 503 SEALS OPEN SEALS (O) PUSH-TYPE (P)	2000 lbs	5% - 10%	20.50'	13.8	OSC OSCILLATED COIL WINDING The steel strapping is wound in a tight uniform pattern to a face width of 2-5/8" (67mm). Coils are typically 90 lbs (40kg) to 110 lbs (50kg); however, normally average 100 lbs (45kg)	P FINISHES PAINTED AND WAXED (P)	MORE INFO
	3/4"	19	.020" (.51mm)	HT2034	O - 601 P - 603 SEALS OPEN SEALS (O) PUSH-TYPE (P)	2100 lbs	5% - 10%	19.60'	13.2	OSC OSCILLATED COIL WINDING The steel strapping is wound in a tight uniform pattern to a face width of 2-5/8" (67mm). Coils are typically 90 lbs (40kg) to 110 lbs (50kg); however, normally average 100 lbs (45kg)	P FINISHES PAINTED AND WAXED (P)	MORE INFO
	3/4"	19	.023" (.58mm)	HT2334	O - 601 P - 603 SEALS OPEN SEALS (O) PUSH-TYPE (P)	2450 lbs	5% - 10%	17.10'	11.5	OSC OSCILLATED COIL WINDING The steel strapping is wound in a tight uniform pattern to a face width of 2-5/8" (67mm). Coils are typically 90 lbs (40kg) to 110 lbs (50kg); however, normally average 100 lbs (45kg)	P FINISHES PAINTED AND WAXED (P)	MORE INFO
	3/4"	19	.025" (.64mm)	HT2534	S - 717 P - 703-S P - 703LHD SEALS PUSH-TYPE (P) SEMI-CLOSED (S)	2700 lbs	5% - 10%	15.70'	10.5	OSC OSCILLATED COIL WINDING The steel strapping is wound in a tight uniform pattern to a face width of 2-5/8" (67mm). Coils are typically 90 lbs (40kg) to 110 lbs (50kg); however, normally average 100 lbs (45kg)	P,ZE FINISHES PAINTED AND WAXED (P) ZINC/EPOXY COATED (ZE)	MORE INFO
	3/4"	19	.029" (.75mm)	HT2934	S - 717 P - 703-S P - 703LHD SEALS PUSH-TYPE (P) SEMI-CLOSED (S)	3125 lbs	5% - 10%	13.50'	9.0	OSC / RW OSCILLATED COIL WINDING The steel strapping is wound in a tight uniform pattern to a face width of 2-5/8" (67mm). Coils are typically 90 lbs (40kg) to 110 lbs (50kg); however, normally average 100 lbs (45kg) RIBBON WOUND The steel strapping is wound onto itself so that the face width of the coil is the same as the strap. Ribbon Wound is available in 3/4" (19mm), 1 1/4" (32mm), and 2" (51mm). Coils can be 65 lbs (30 kg) to 120 lbs (54kg); however, normally average 100 lbs (45kg)	P FINISHES PAINTED AND WAXED (P)	MORE INFO
	3/4"	19	.031" (.79mm)	HT3134	S - 717 P - 703-S P - 703LHD SEALS PUSH-TYPE (P) SEMI-CLOSED (S)	3250 lbs	5% - 10%	12.70'	8.5	OSC / RW OSCILLATED COIL WINDING The steel strapping is wound in a tight uniform pattern to a face width of 2-5/8" (67mm). Coils are typically 90 lbs (40kg) to 110 lbs (50kg); however, normally average 100 lbs (45kg) RIBBON WOUND The steel strapping is wound onto itself so that the face width of the coil is the same as the strap. Ribbon Wound is available in 3/4" (19mm), 1 1/4" (32mm), and 2" (51mm). Coils can be 65 lbs (30 kg) to 120 lbs (54kg); however, normally average 100 lbs (45kg)	P FINISHES PAINTED AND WAXED (P)	MORE INFO
	3/4"	19	.035" (.89mm)	HT3534	S - 717 P - 703-S P - 703LHD SEALS PUSH-TYPE (P) SEMI-CLOSED (S)	3900 lbs	5% - 10%	11.20'	7.5	OSC / RW OSCILLATED COIL WINDING The steel strapping is wound in a tight uniform pattern to a face width of 2-5/8" (67mm). Coils are typically 90 lbs (40kg) to 110 lbs (50kg); however, normally average 100 lbs (45kg) RIBBON WOUND The steel strapping is wound onto itself so that the face width of the coil is the same as the strap. Ribbon Wound is available in 3/4" (19mm), 1 1/4" (32mm), and 2" (51mm). Coils can be 65 lbs (30 kg) to 120 lbs (54kg); however, normally average 100 lbs (45kg)	P,PZ FINISHES PAINTED AND WAXED (P) PRO ZINC SILVER (PZ)	MORE INFO
	1 1/4"	31.8	.025" (.64mm)	HT25114	S - 818 P - 803 SEALS PUSH-TYPE (P) SEMI-CLOSED (S)	4460 lbs	6.5% - 12%	9.41'	6.3	RW RIBBON WOUND The steel strapping is wound onto itself so that the face width of the coil is the same as the strap. Ribbon Wound is available in 3/4" (19mm), 1 1/4" (32mm), and 2" (51mm). Coils can be 65 lbs (30 kg) to 120 lbs (54kg); however, normally average 100 lbs (45kg)	P FINISHES PAINTED AND WAXED (P)	MORE INFO
^^ ^^ = PUNCH STRAPPING This Strapping is available in a 100lb coil of Punch Strapping	1 1/4"	31.8	.029" (.74mm)	HT29114	S - 818 P - 803 SEALS PUSH-TYPE (P) SEMI-CLOSED (S)	5275 lbs	6.5% - 12%	8.11'	5.4	RW RIBBON WOUND The steel strapping is wound onto itself so that the face width of the coil is the same as the strap. Ribbon Wound is available in 3/4" (19mm), 1 1/4" (32mm), and 2" (51mm). Coils can be 65 lbs (30 kg) to 120 lbs (54kg); however, normally average 100 lbs (45kg)	P,ZE FINISHES PAINTED AND WAXED (P) ZINC/EPOXY COATED (ZE)	MORE INFO
	1 1/4"	31.8	.031" (.79mm)	HT31114	S - 818 P - 803 SEALS PUSH-TYPE (P) SEMI-CLOSED (S)	5450 lbs	6.5% - 12%	7.60'	5.1	RW RIBBON WOUND The steel strapping is wound onto itself so that the face width of the coil is the same as the strap. Ribbon Wound is available in 3/4" (19mm), 1 1/4" (32mm), and 2" (51mm). Coils can be 65 lbs (30 kg) to 120 lbs (54kg); however, normally average 100 lbs (45kg)	P FINISHES PAINTED AND WAXED (P)	MORE INFO
	1 1/4"	31.8	.035" (.90mm)	HT35114	S - 818 P - 803 SEALS PUSH-TYPE (P) SEMI-CLOSED (S)	5800 lbs	6.5% - 12%	6.72'	4.5	RW RIBBON WOUND The steel strapping is wound onto itself so that the face width of the coil is the same as the strap. Ribbon Wound is available in 3/4" (19mm), 1 1/4" (32mm), and 2" (51mm). Coils can be 65 lbs (30 kg) to 120 lbs (54kg); however, normally average 100 lbs (45kg)	P,PZ FINISHES PAINTED AND WAXED (P) PRO ZINC SILVER (PZ)	MORE INFO
	2"	51	.044" (1.12mm)	HT442	T - 902T T - 203TO SEALS THREAD-ON (T)	12,200 lbs	6.5% - 12%	3.34'	2.2	RW RIBBON WOUND The steel strapping is wound onto itself so that the face width of the coil is the same as the strap. Ribbon Wound is available in 3/4" (19mm), 1 1/4" (32mm), and 2" (51mm). Coils can be 65 lbs (30 kg) to 120 lbs (54kg); however, normally average 100 lbs (45kg)	P,PZ FINISHES PAINTED AND WAXED (P) PRO ZINC SILVER (PZ)	MORE INFO

If you do not see a specific steel strapping size in the table above, please Contact us for more information.

TABLE REFERENCE

TAGS	** = 200/300 ft demonstration coils are available for these sizes. ^ = This Strapping is available in a 200 ft box, 300ft box, or 100lb coil of Punch Strapping ^^ = This Strapping is available in a 100lb coil of Punch Strapping
SEALS	It is very important that you use the correct sealer and seals for your strapping application. Note that without the proper sealer and seals, the seal joint efficiency may not meet the specifications listed in the ASTM Standards for steel and non metallic strapping. Please contact a JEM sales representative for assistance in choosing the proper tooling and seals for your application.
BREAK STRENGTH	Strapping break strengths are listed as averages. Always use American Society for Testing Materials (ASTM D-3953) minimum break strengths for package design/safety factor purposes. For proper strapping selection, contact your JEM sales representative.
COIL WINDINGS	OSC = Oscillated Coil Winding RW = Ribbon Wound OSC/RW = Oscillated Coil Winding OR Ribbon Wound.

↑ Back to Top

Regular Duty / Standard Duty (RD)
Regular Duty steel strapping is manufactured to meet rigid cargo control specifications and tolerances. It is ideal for all general strapping applications and is available in different strap finishes.


High Tensile (HT)
High Tensile steel strapping is made to offer optimum results across any industry load application. High Tensile steel strapping is a cold-rolled steel with high carbon and manganese content, and is heat treated to ensure uniform tensile and elongation characteristics. High Tensile is available in different strap finishes.

All of our regular and high tensile steel strapping exceeds ASTM D3953 steel specifications. AAR Certified Strapping is available in 3/4" and 1-1/4" High Tensile Steel Strapping

For custom orders, please contact your JEM sales representative for further information on custom products.

↑ Back to Top

All finishes are treated with a hard wax coating. This allows the strapping to flow smoothly in automated machines, tools, and around corners.

	Unpainted and Waxed Regular Duty Steel Strapping (U) A low carbon product for many general applications. This is a special product for use where paint is not desired. Unpainted strap is an economical alternative that offers similar characteristics as painted strap with less cost. In some cases unpainted strapping will out perform painted strapping. Please Contact us for more information
	Blued and Waxed Steel Strapping (B) The surface finish is blued by a heat process rather than painted. Bluing the steel burns off foreign material from steel. Blued strap is an economical alternative that offers similar characteristics as painted strap with less cost.

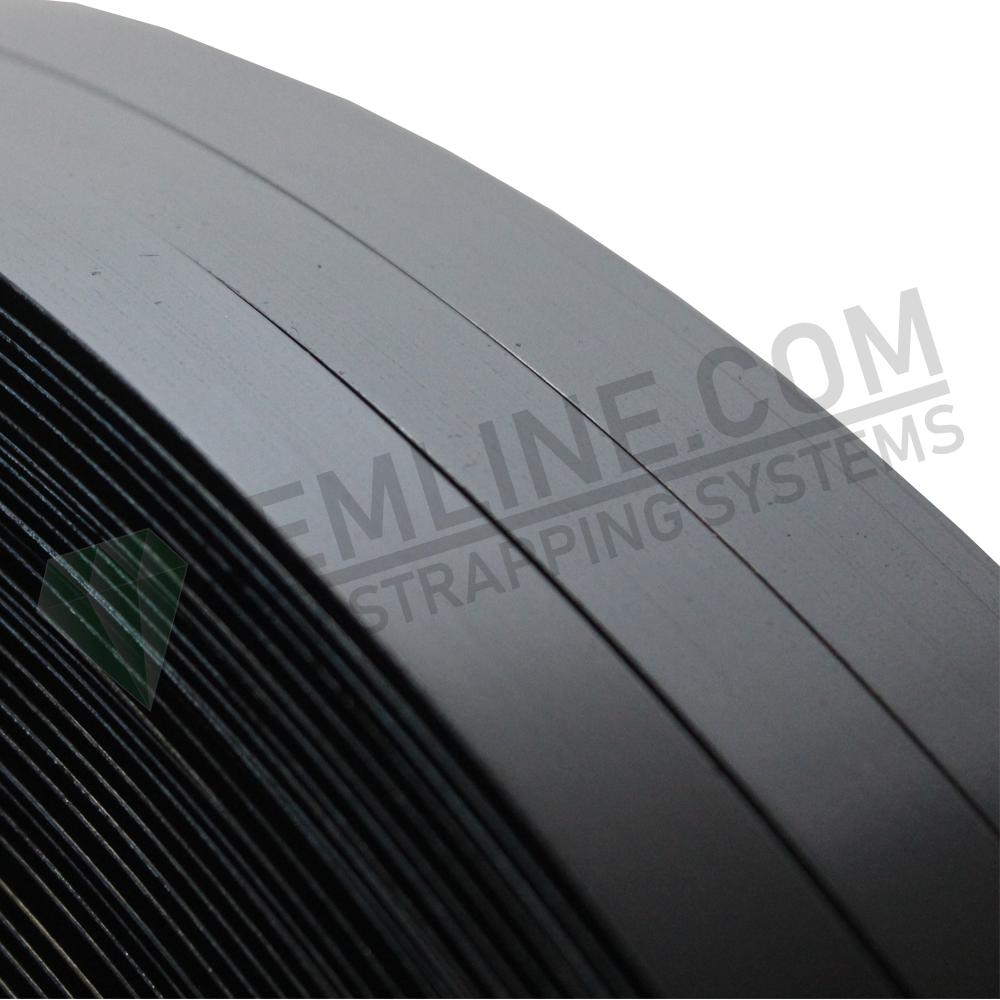

	Painted and Waxed Steel Strapping (P) Painted Steel Strapping has a hard baked on paint on both sides along with a wax coating. The standard color for painted strapping is black. Other colours are available; however, minimum orders are required. Please Contact us for more information.
	Zinc/Epoxy Coated Steel Strapping (ZE) Commonly used for prolonged outside storage. This finish offers greater rust resistance than regular painted strapping. Product is typically used for items that will be outdoors for long periods of time. Please Contact us for more information and pricing.
	Pro Zinc Silver Steel Strapping (PZ) This product has superior anti-corrosive properties as compared to black painted and zinc epoxy coated strapping. This is a superior corrosion resistant product that can be used in most strapping applications. Over time this product will give you the most value for your purchasing dollar where rust resistance is required. Pro Zinc Silver works exceedingly well in all tools and automated systems. JEM Flex Pro Zinc meets military grade applications. Please Contact us for more information.

↑ Back to Top

JEM steel strapping standard coil winding is either in an oscillated pattern (OSC) or into the width of the strapping called ribbon wound (RW).

	Oscillated Winding (OSC) The steel strapping is wound in a tight uniform pattern to a face width of 2-5/8" (67mm). Coils are typically 90 lbs (40kg) to 110 lbs (50kg); however, normally average 100 lbs (45kg).
	Ribbon Wound (RW) The steel strapping is wound onto itself so that the face width of the coil is the same as the strap. Ribbon Wound is available in 3/4" (19mm), 1 1/4" (32mm), and 2" (51mm). Coils can be 65 lbs (30 kg) to 120 lbs (54kg); however, normally average 100 lbs (45kg).
	Jumbo Coil Winding (J) - SPECIAL ORDER For high volume applications, certain strapping sizes are available in jumbo coils, ranging in weight from 330 lbs (150kg) to 2000 lbs (900kg). Coil face ranges from 6" (152.4mm), 7-1/2" (190.5mm), 8" (203.2mm), and 12" (304.8mm). Jumbo Coil Winding is available for Regular Duty and High Tensile Steel Strapping. Contact us for more information.

↑ Back to Top

Oscillated wound steel strapping coils are shrouded. Skids are normally shroud wrapped with cardboard for protection in transit. Ribbon wound steel strapping is normally packaged bare coiled onto the skid. Special packaging options are available. Please Contact your sales representative for more information. Standard Oscillated Wound Coils are typically packaged 12 coils per skid (Average of 1200 lbs / 544 kgs ) Ribbon Wound Coils are typically packaged 20 coils per skid (Average 2000 lbs / 907 kgs ) Jumbo Wound Oscillated Coils ranges from 1 coil to 4 coils per skid based on size and weight of each coil. All strapping is packaed on heavy duty heat treated hardwood skids. ↑ Back to Top
